178 x 74 cm | 7,2 / 9,2 m
This set is composed for the following platform distances:
2m planking: Max. 3,40 m to the first platform and max. 2,25 m between the following platforms.
Frames (tube dimensions: Ø50x2mm) with fully welded joints ensures a strong and stable scaffold. 8 rungs per 2 m. High-impact self-locking claws on all horizontal braces and diagonals (tube dimensions: Ø50x2mm). The claws are cast solid quality with fully welded joints.
Delivered with JUMBO Scaffolding Platform (aluminum / plywood) The platform consists of waterproof, non-slip, Finnish plywood – in pure birch wood, mounted in strong aluminum side-pieces. The platforms are equipped with staggered hooks, which makes lengthwise extension without displacement possible. On the underside of the platform is our pat. storm lock for securing the deck (fits all types of scaffolding)
As standard, JUMBO Scaffolding is supplied with extra sturdy Ø125 mm castors with brake. The castors are further provided with a polyurethane coating, which ensures high wear resistance and good resistance to solvents. The standard castor can be replaced with a larger Ø200 mm castor with brake and height adjustment, just as the scaffolding can be extended with accessories.

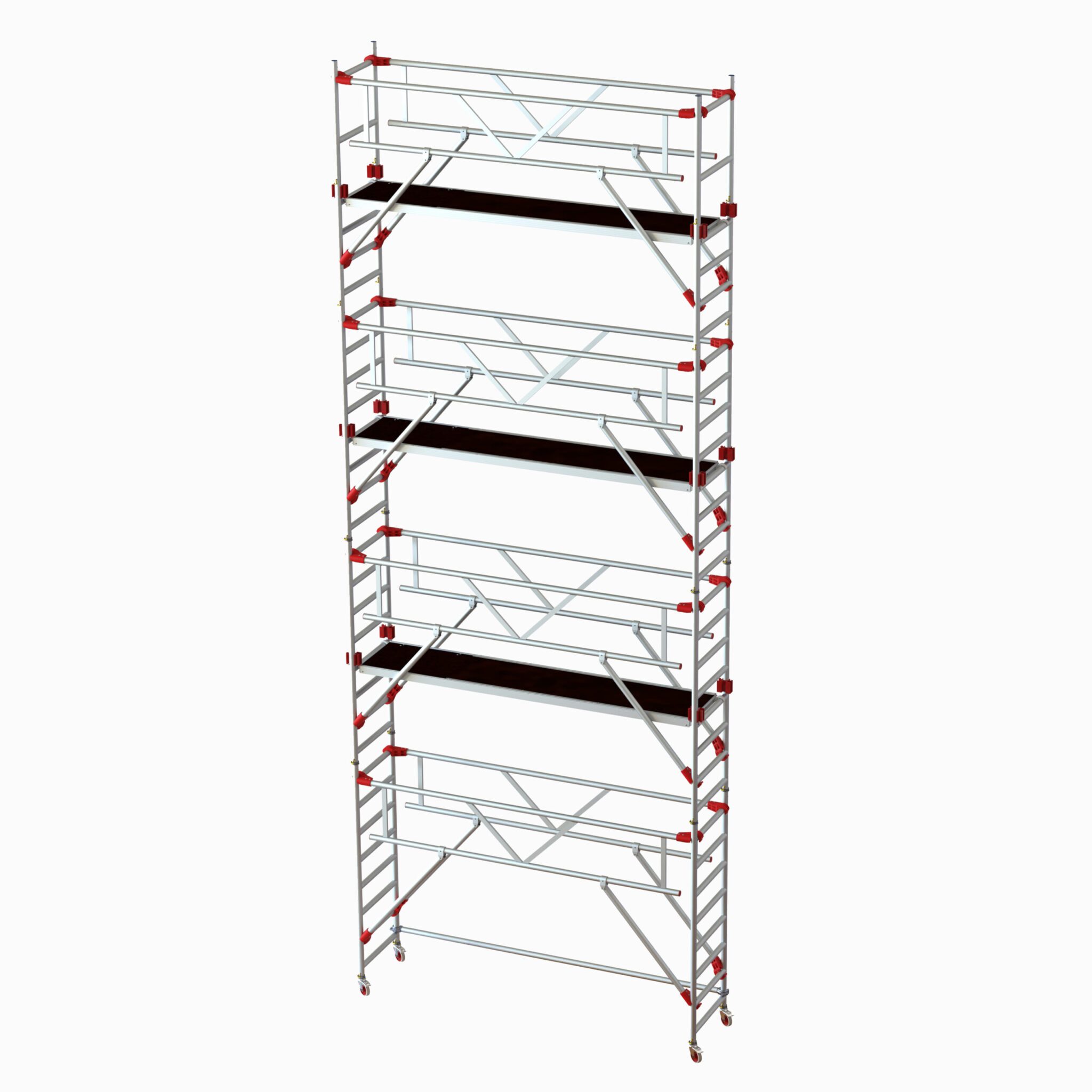

This set is composed of:
4 x Ø125 mm. castors with brake
6 x 8-step frames 74 x 200 cm
2 x 4-step frames 74 x 100 cm
2 x Guardrail frames 74 x 100 cm
1 x Handrails 178 cm
8 x Handrail AGR 178 cm
3 x Decks with flap 60×178 cm
16 x Clips
12 x Toeboard Fittings
178 cm | For Tower Scaffold
4 Rungs | 74 x 100 cm
8 Rungs | 74 x 200 cm
2 Rungs | 74 x 100 cm
1 m | Narrow til 178
Fits 74 x 178 cm
178 cm | Narrow
12,5 cm castors to 20 cm adjustable castors
