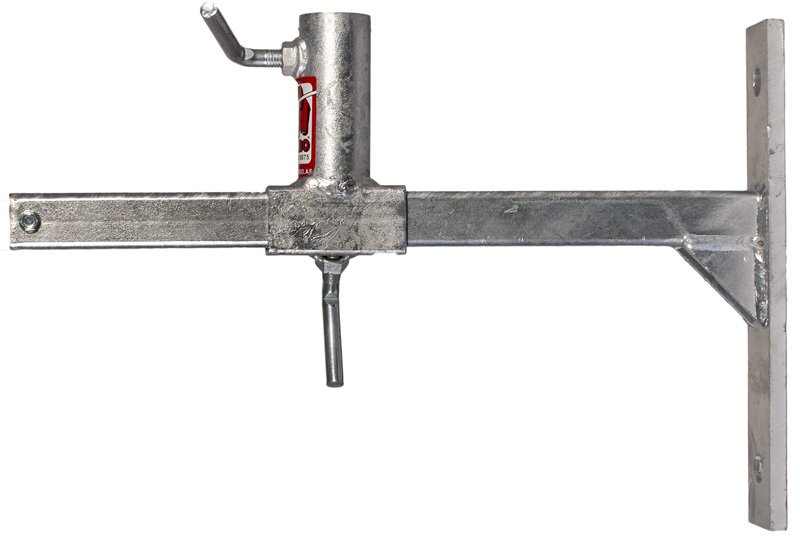

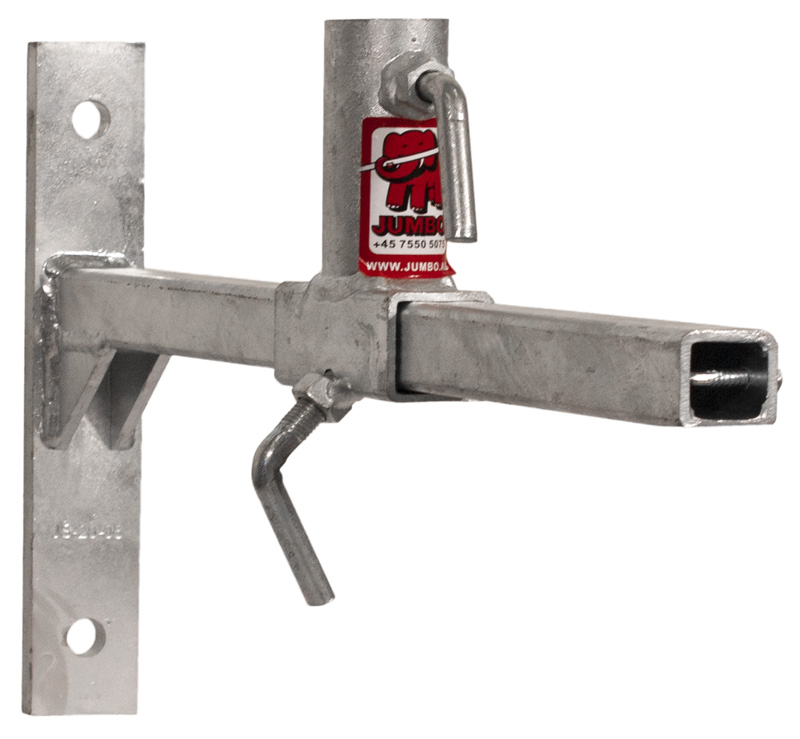

Guardrail post mount

35 cm

For mounting railings on gables, facades, walls, etc. Made of heavily hot-dip galvanized high-strength steel, with fully welded joints. Robust 5 x 30 cm fastening bracket, with a wall thickness of 10 mm and 2 x Ø17 mm holes for fastening.

Robust arm (35 or 65 cm) in 32 x 32 mm profile in 3 mm wall thickness with double corner reinforcement for extra strength. The adjustable slide can be fixed anywhere on the arm, for stepwise adjustment of the distance to the handrail. End stop ensures that the sled cannot be pulled off completely.

The post holder is made of Ø42.40 pipe, with 3.25 mm wall thickness and thumbscrew for fixing the railing post. As a railing post, either a railing post for wooden railings (2200101) or for a steel railing (2200120) is used.

List price

44,00

excl. VAT

Art. No:

37GG350

DB-no:

2141403

EAN:

2141403

Additional information:

Height: 30 cm
Length: 5 cm
Width: 45 cm

Guardrail post mount

SKU 37GG350 Category
