Guardrail post mount

65 cm

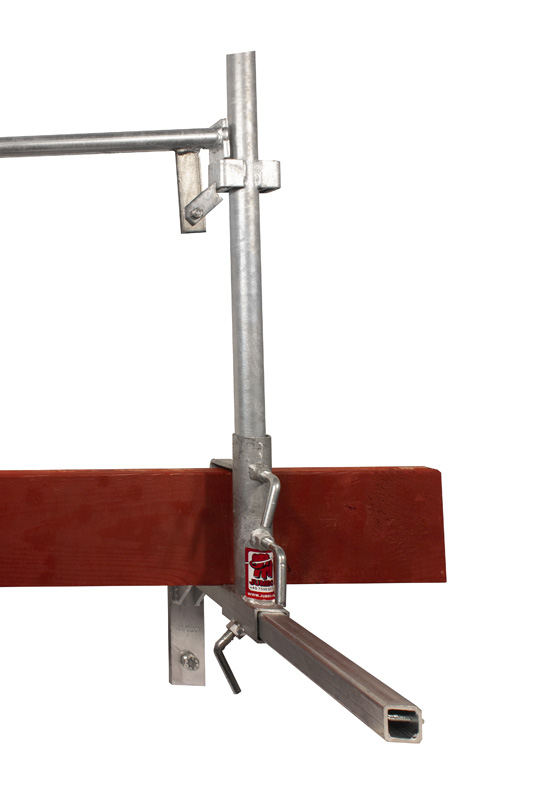

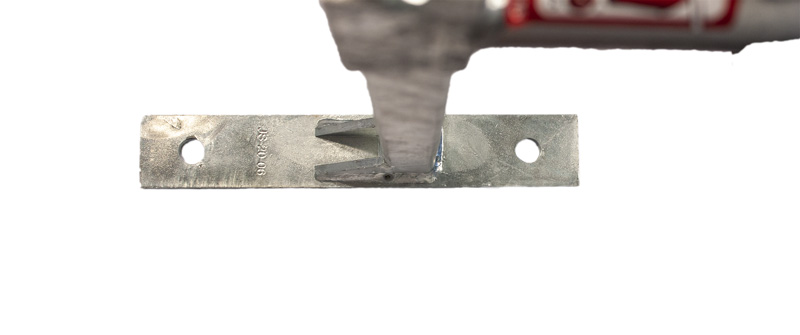

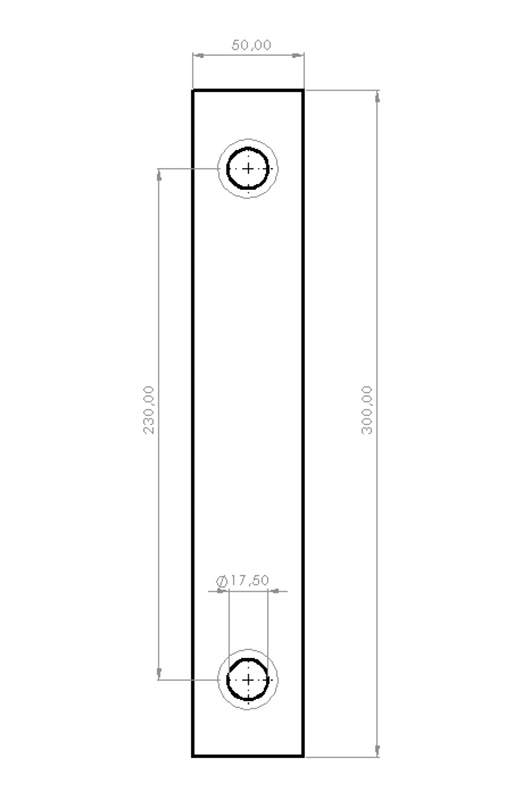

For mounting railings on gables, facades, walls, etc. Made of heavily hot-dip galvanized high-strength steel, with fully welded joints. Robust 5 x 30 cm fastening bracket, with a wall thickness of 10 mm and 2 x Ø17 mm holes for fastening.

List price


excl. VAT

Art. No:





Additional information:

Height: 30 cm
Length: 5 cm
Width: 75 cm

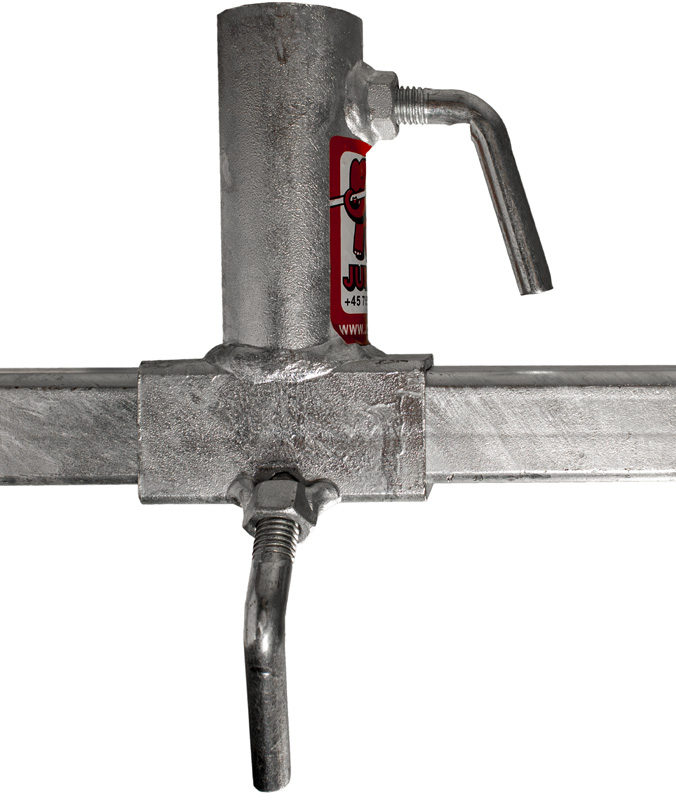

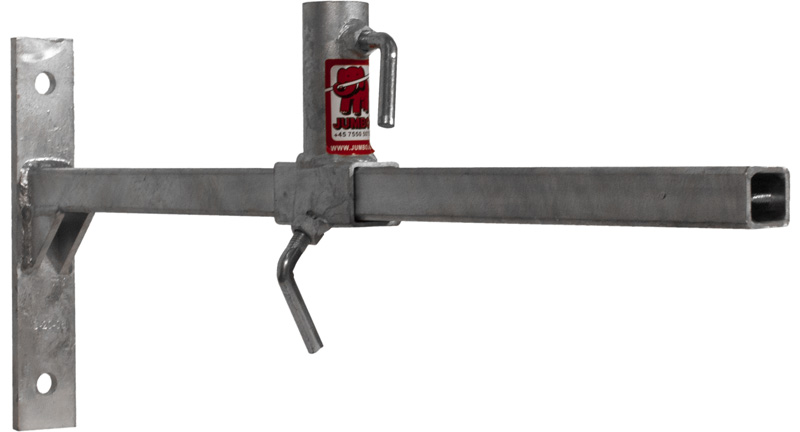

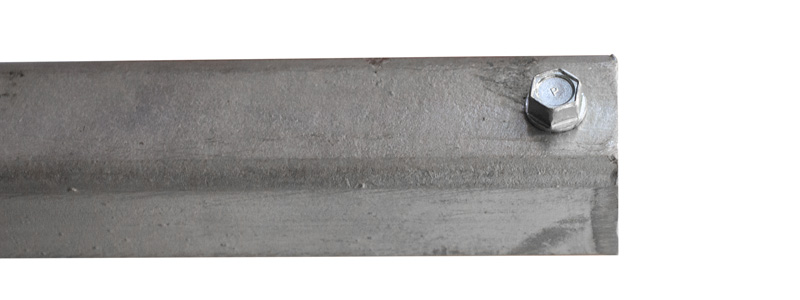

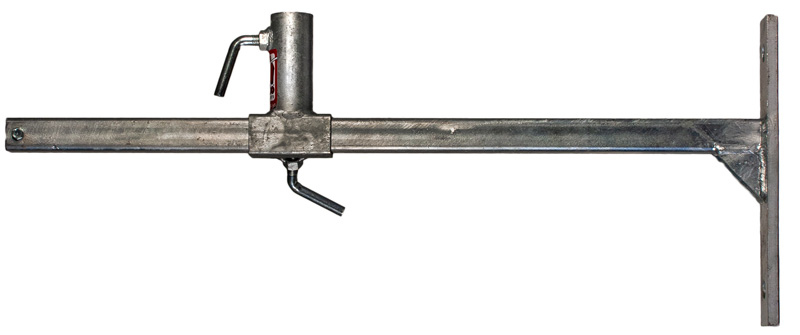

Robust arm (35 or 65 cm) in 32 x 32 mm profile in 3 mm wall thickness with double corner reinforcement for extra strength. The adjustable slide can be fixed anywhere on the arm, for stepwise adjustment of the distance to the handrail. End stop ensures that the sled cannot be pulled off completely.

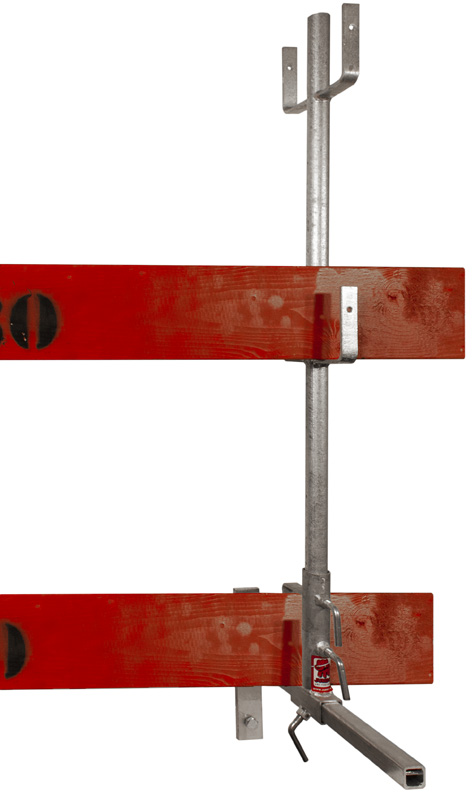

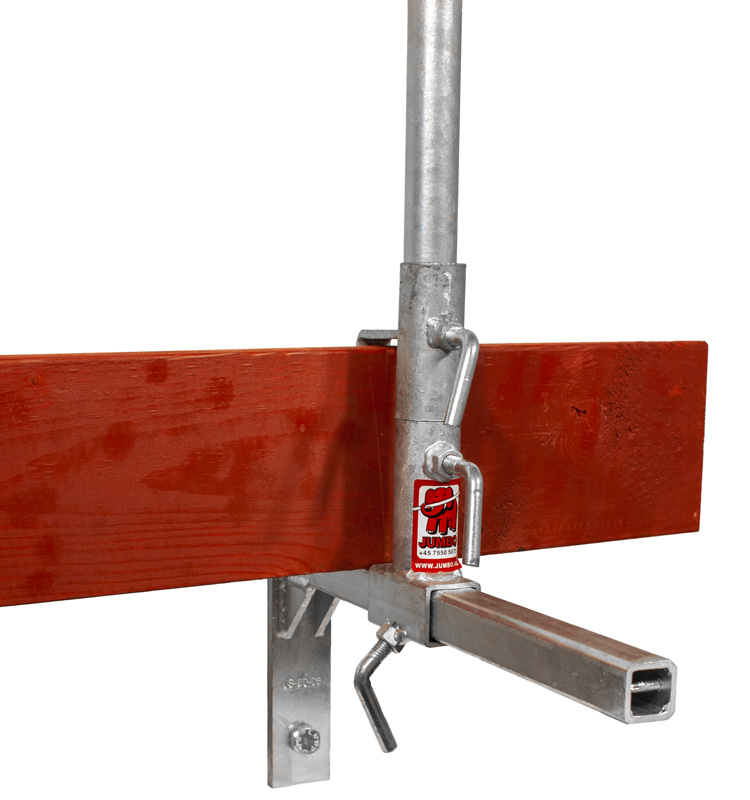

The post holder is made of Ø42.40 pipe, with 3.25 mm wall thickness and thumbscrew for fixing the railing post. As a railing post, either a railing post for wooden railings (2200101) or for a steel railing (2200120) is used.

Guardrail post mount

SKU 37GG650 Category Tag


Spare parts:

Is your spare part not there? Contact us – we might may be able to get it anyway.
